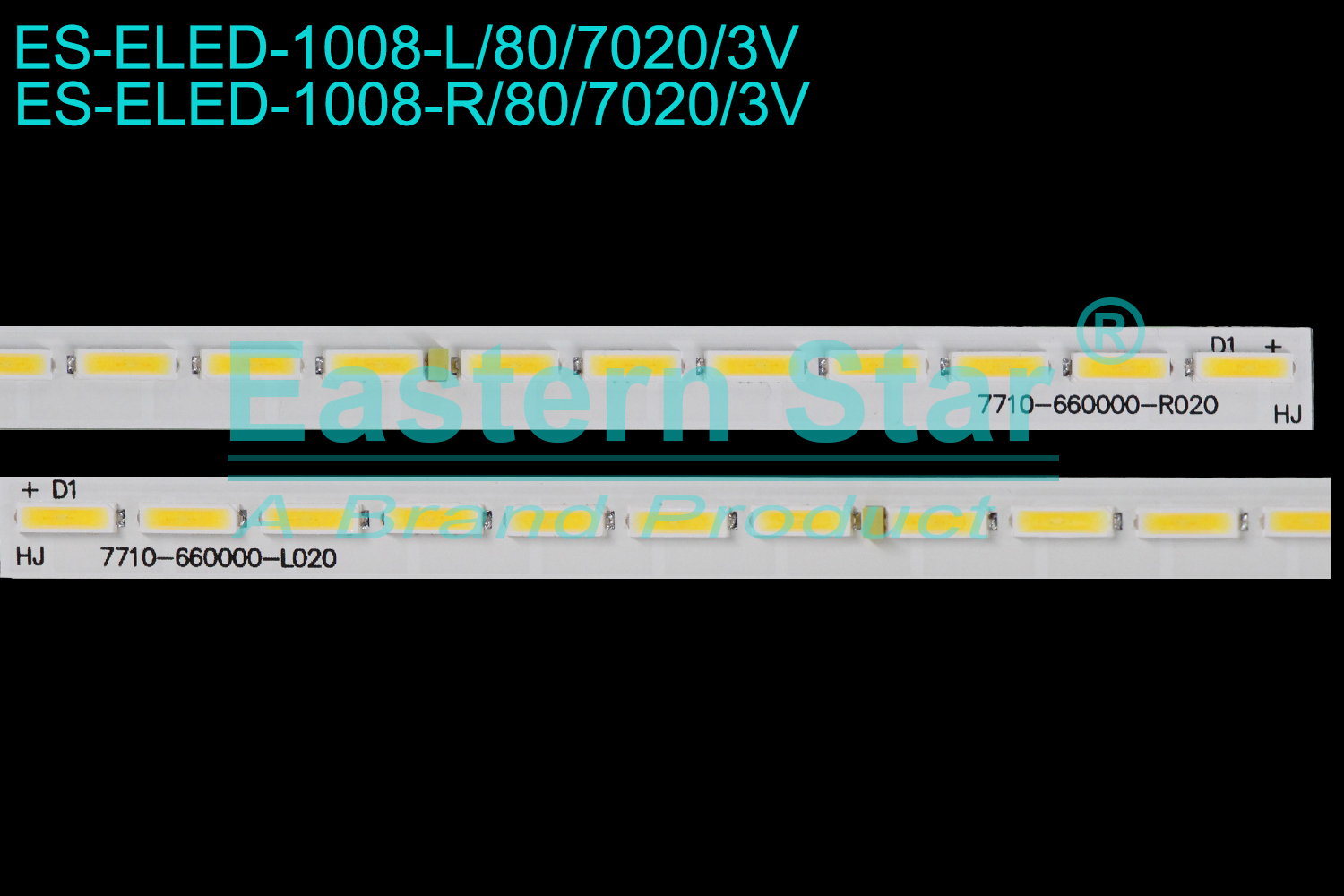

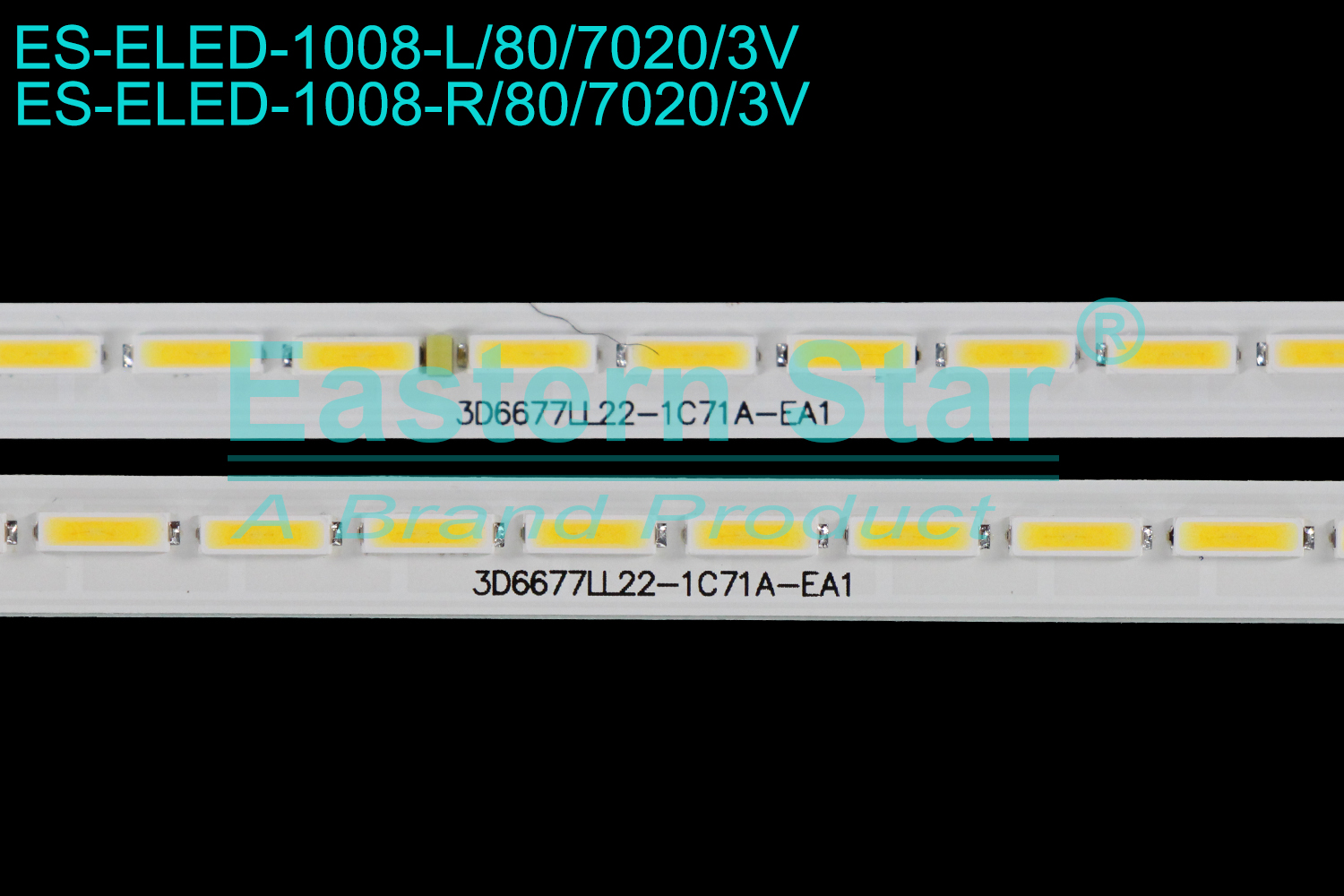

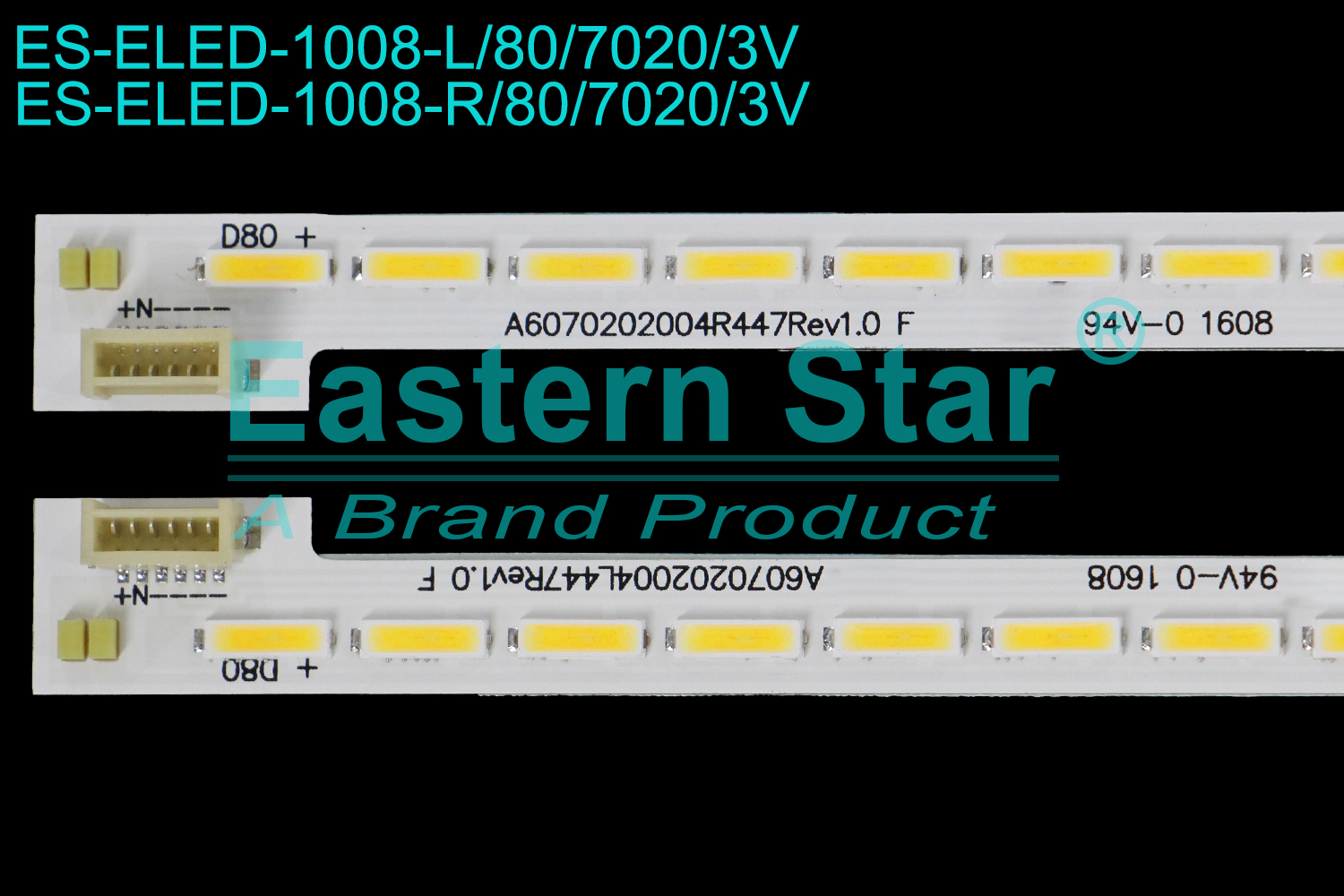

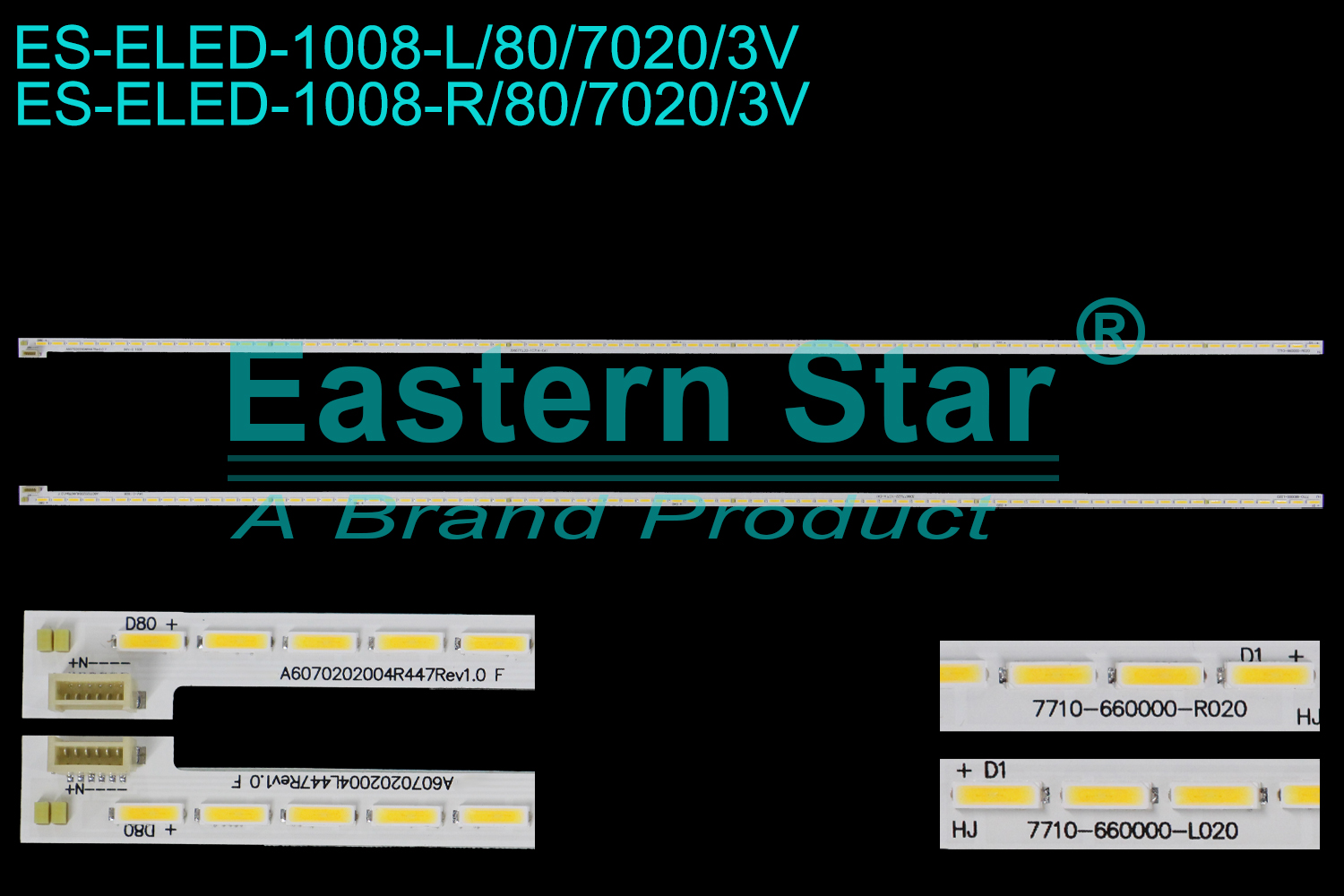

ES-ELED-1008 ELED/EDGE TV backlight use for 60'' Skyworth 60E510 L:A6070202004L447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-L020 R:A6070202004R447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-R020 LED BACKLIGHT STRIP(2)

Publish Date:2025-08-01 Visits:128

Length: L=R:664MM*10MM

Voltage:3V

LED Quantity: L: 80LEDs R: 80LEDs

Original Code:L:A6070202004L447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-L020 R:A6070202004R447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-R020

ES Model: ES-ELED-1008-L/80/7020/3V ES-ELED-1008-R/80/7020/3V

Brands: use for Skyworth

Complete Set: 1SET=1L+1R

Length: L=R:664MM*10MM

Voltage: 3V

Original Code:L:A6070202004L447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-L020 R:A6070202004R447Rev1.0 F 3D6677LL22-1C71A-EA1 7710-660000-R020

Panel Sticker Number: /

TV Models: 60E510

ELED TV BACKLIGHTS
