ELED TV BACKLIGHTS
ES-ELED-1064 ELED/EDGE TV backlight use for 65'' Changhong 65Q2EU,65Q3EU CH65EA1A-T01-L1 850134947， CH65EA1A-T01-L2 850134951， CH65EA1A-T01-R1 850134952， CH65EA1A-T01-R2 850134953 LED BACKLIGHT STRIP(4)
Publish Date:2026-01-30 Visits:1
Length: L1=R2:357MM*6MM L2=R1:355MM*6MM
Voltage:6V
LED Quantity: L1: 55LEDs L2: 55LEDs R1: 55LEDs R2: 55LEDs
Original Code:CH65EA1A-T01-L1 850134947， CH65EA1A-T01-L2 850134951， CH65EA1A-T01-R1 850134952， CH65EA1A-T01-R2 850134953

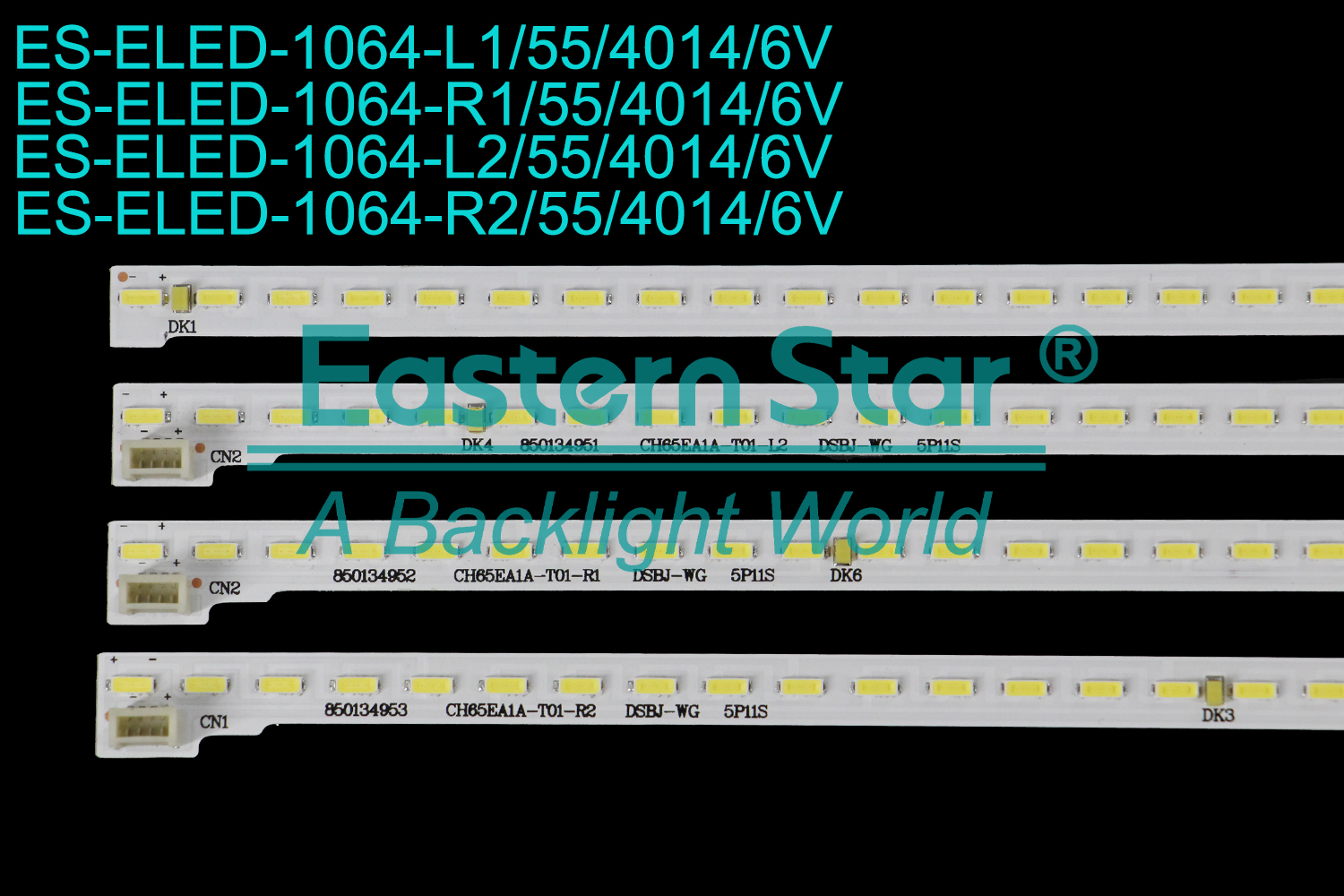

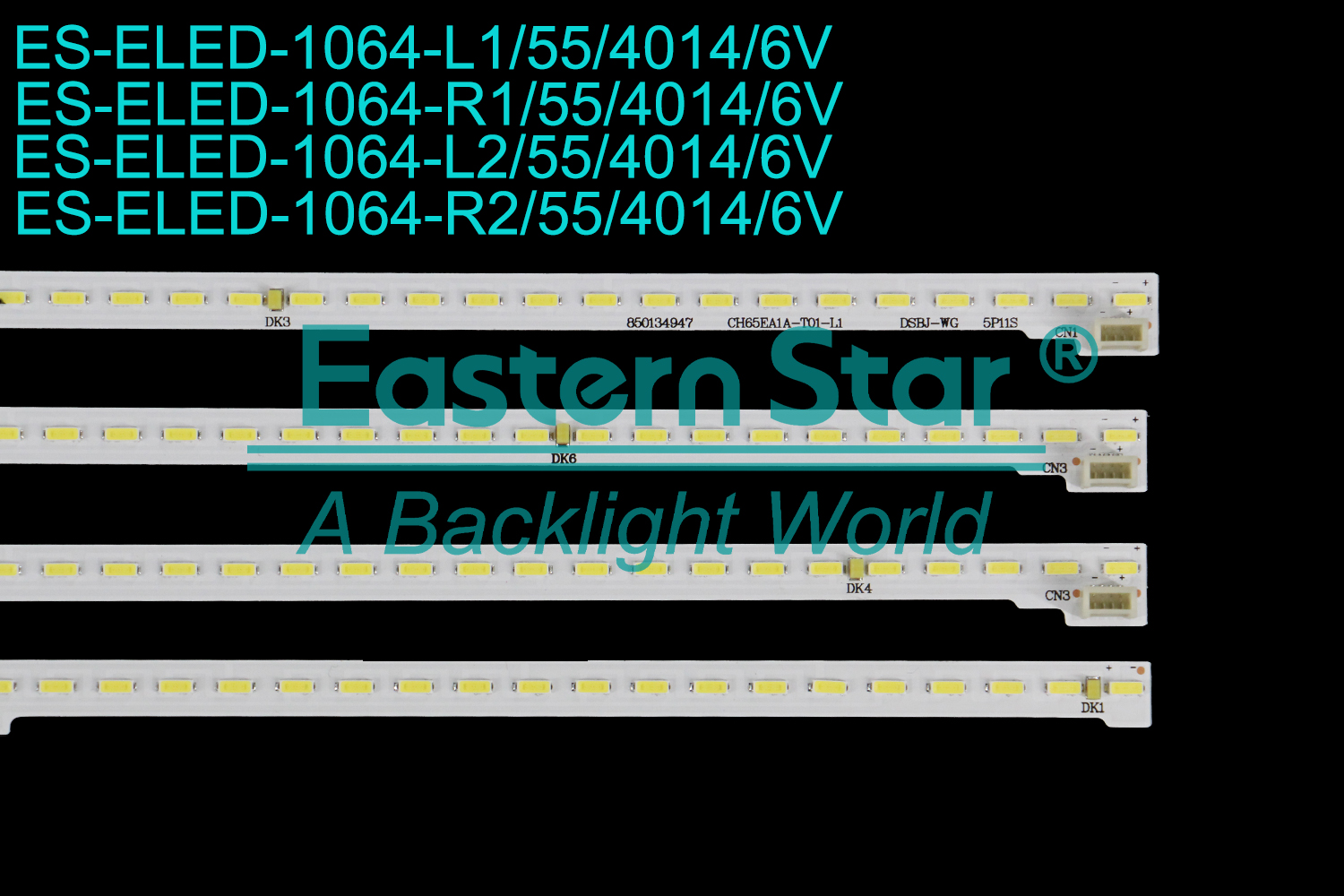

ES Model: ES-ELED-1064-L1/55/4014/6V ES-ELED-1064-R1/55/4014/6V ES-ELED-1064-L2/55/4014/6V ES-ELED-1064-R2/55/4014/6V
Brands: use for Changhong

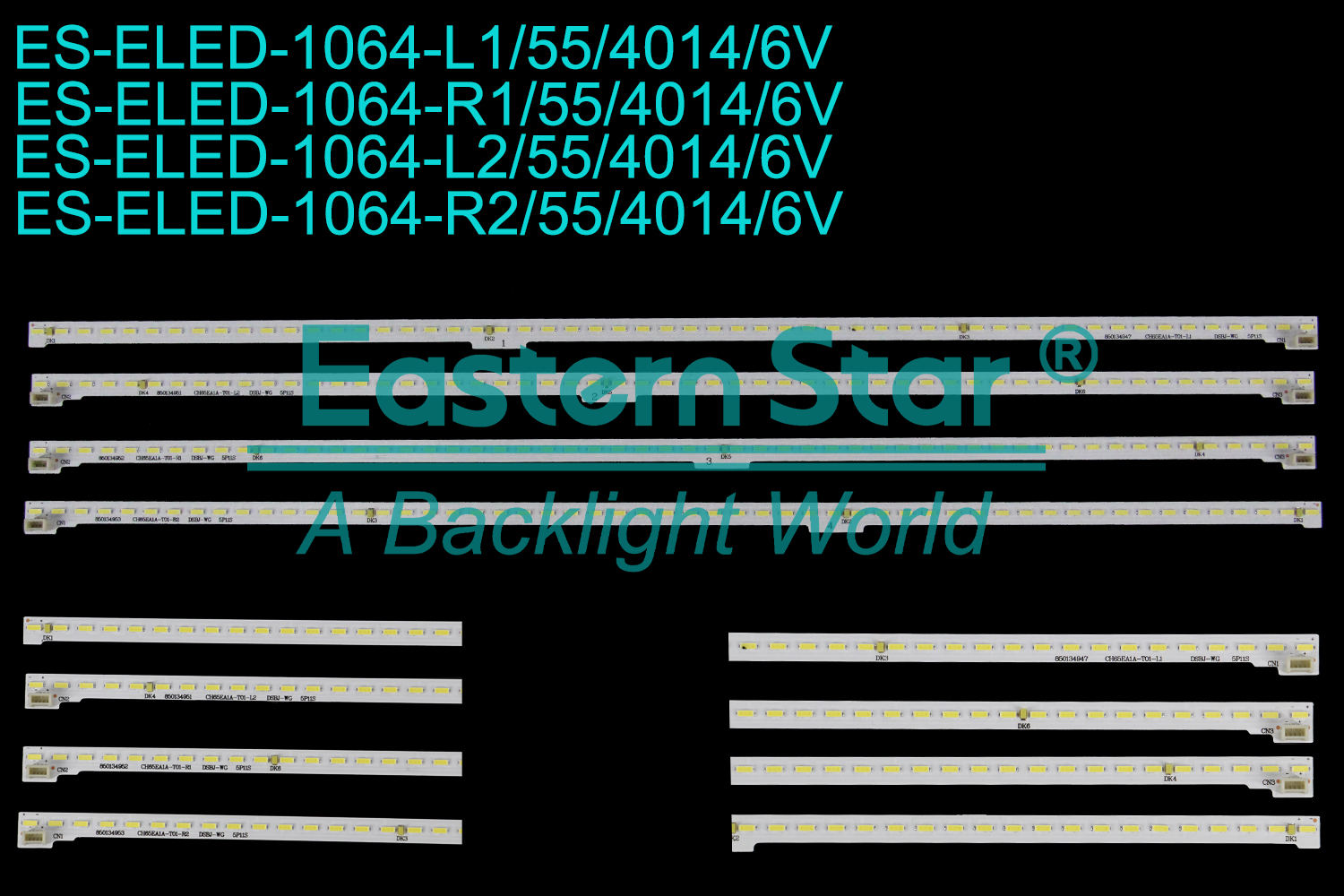

Complete Set: 1SET=1L1+1R1+1L2+1R2
Length: L1=R2:357MM*6MM L2=R1:355MM*6MM
Voltage: 6V
Original Code:CH65EA1A-T01-L1 850134947， CH65EA1A-T01-L2 850134951， CH65EA1A-T01-R1 850134952， CH65EA1A-T01-R2 850134953
Panel Sticker Number: /
TV Models: 65Q2EU,65Q3EU
