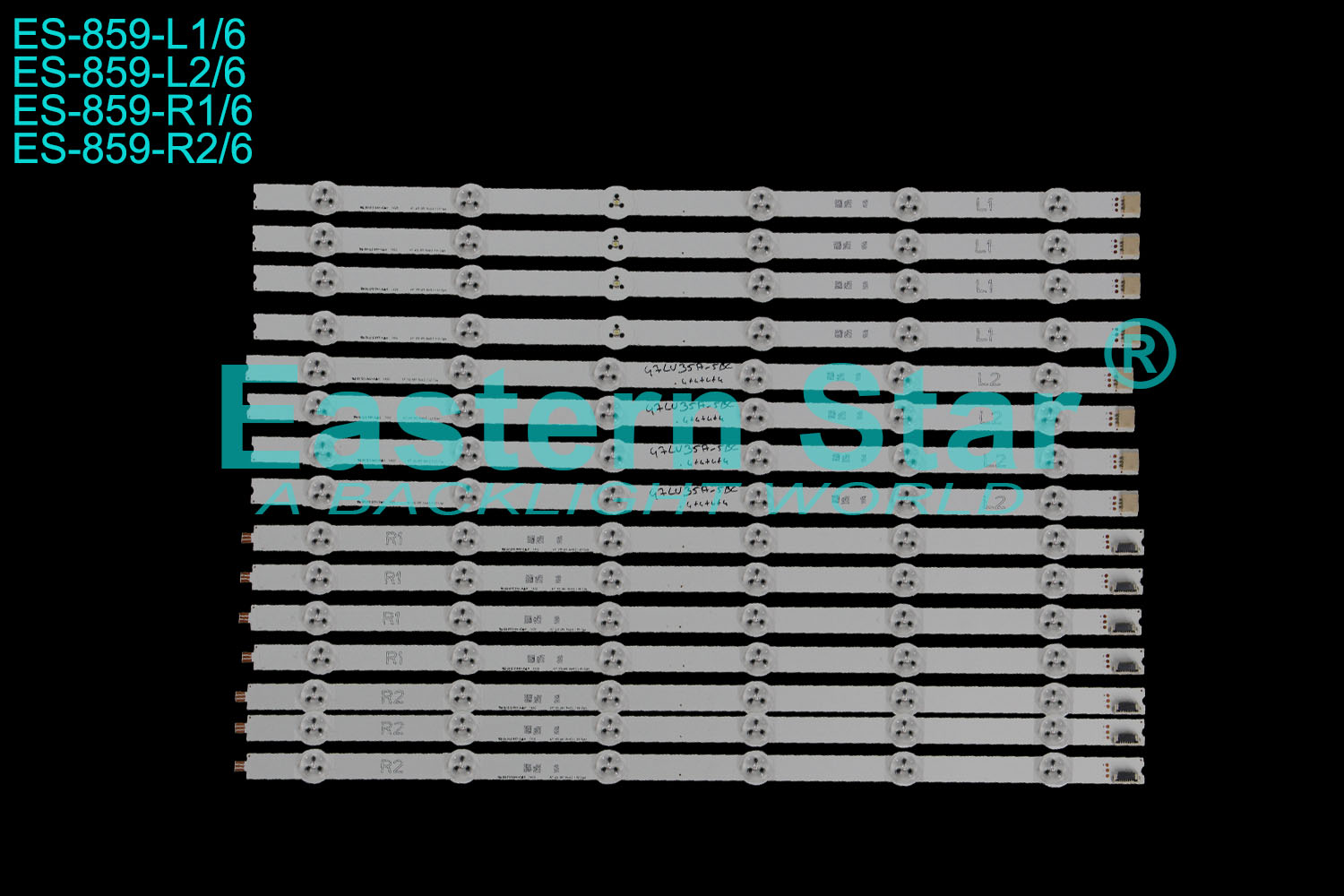

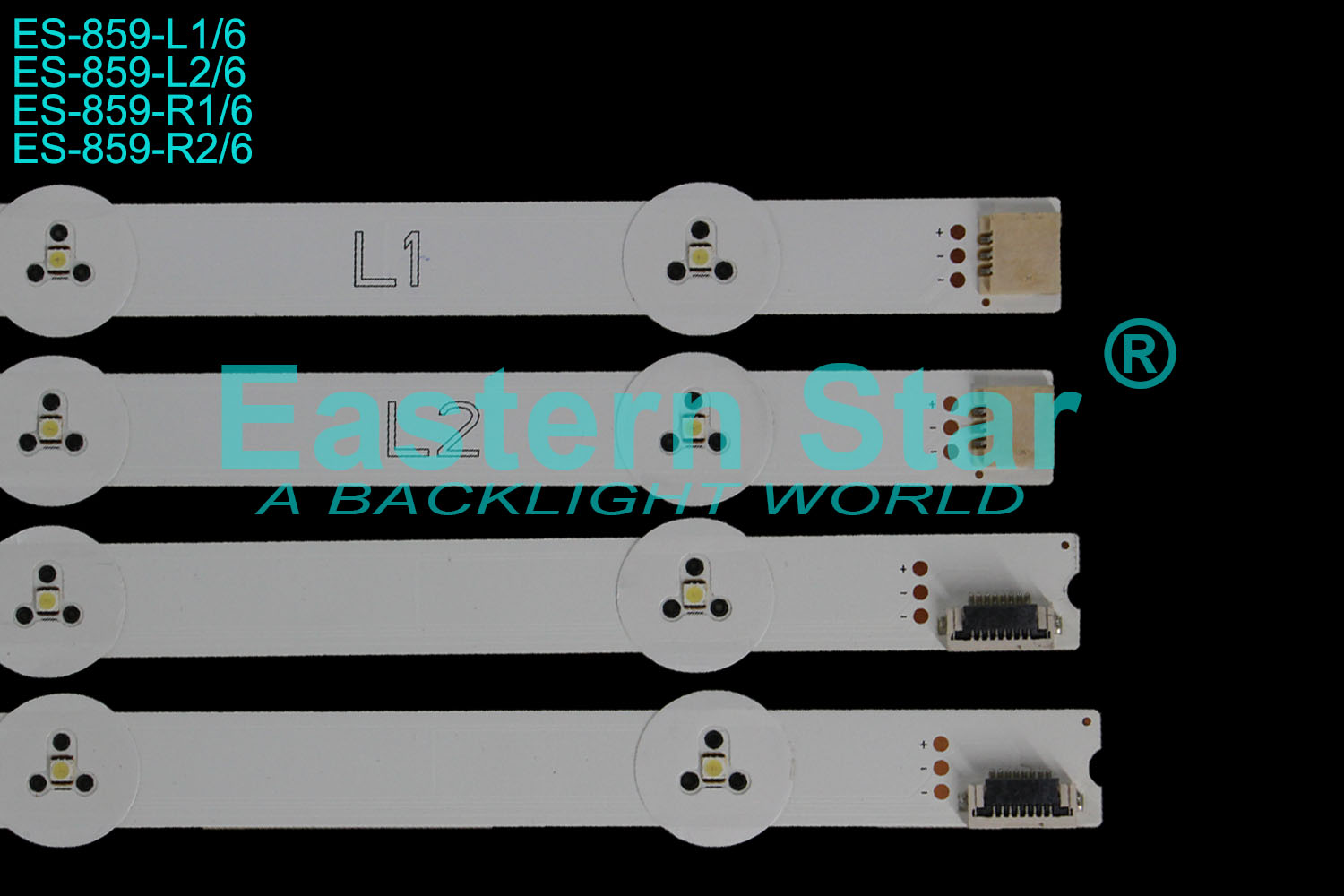

ES-859 LED TV Backlight use for Lg 47'' TV 47LV35A-5BC 47'' V15 DRT REV0.5 LED STRIPS(16)
Publish Date:2021-05-28 Visits:5287
Length: L1=L2:585MM R1=R2:591MM
LED Quantity: L1: 6LEDs L2: 6LEDs R1: 6LEDs R2: 6LEDs
Original Code:

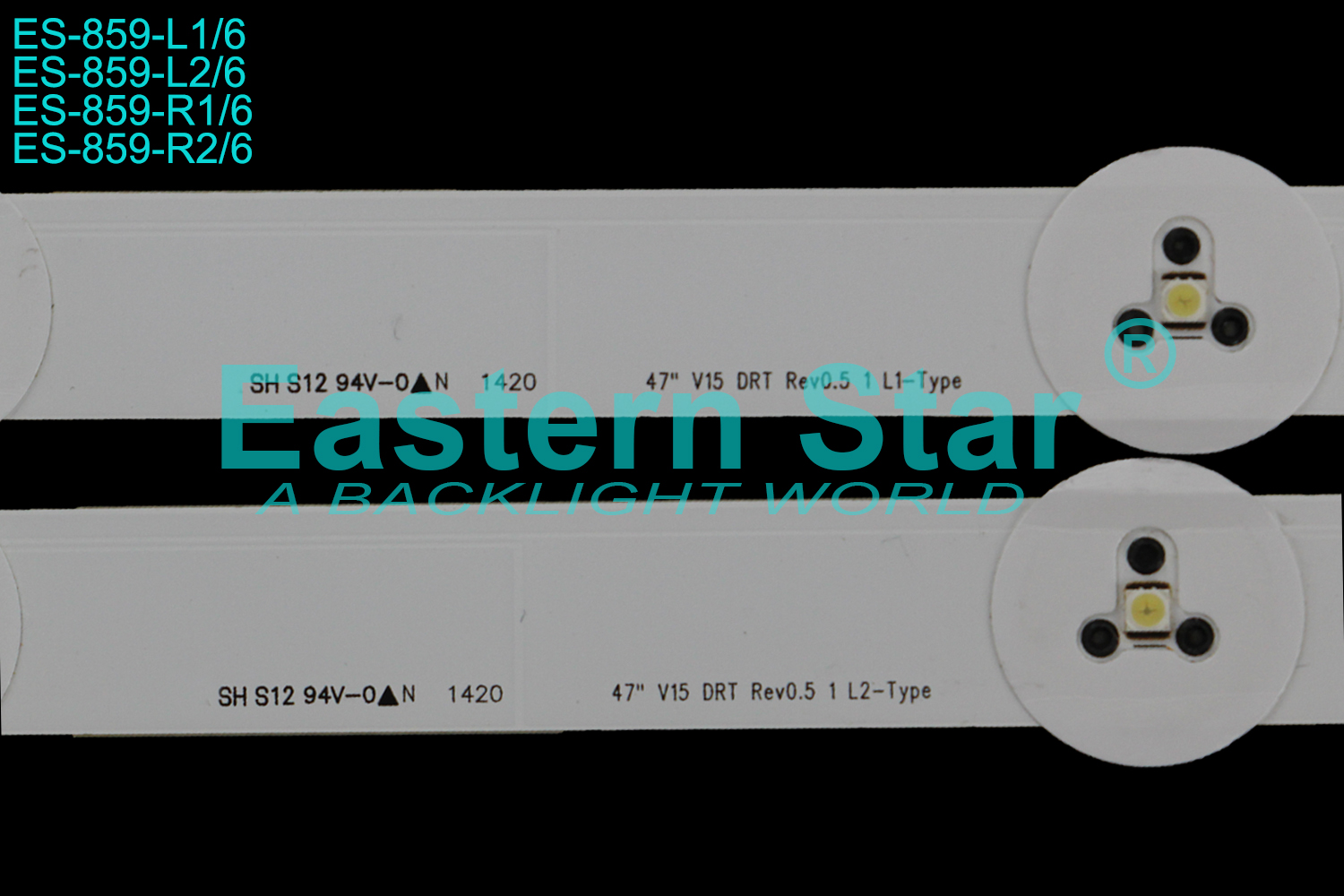

47'' V15 DRT REV0.5 1 L1-TYPE
47'' V15 DRT REV0.6 1 R1-TYPE
47'' V15 DRT REV0.5 1 L2-TYPE
47'' V15 DRT REV0.6 1 R2-TYPE
ES Model: ES-859-L1/6 ES-859-R1/6 ES-859-L2/6 ES-859-R2/6
Brands: use for Lg
Complete Set: 4L1+4R1+4L2+4R2
Length: L1=L2:501MM R1=R2:509MM
Original Code:
47'' V15 DRT REV0.5 1 L1-TYPE
47'' V15 DRT REV0.6 1 R1-TYPE
47'' V15 DRT REV0.5 1 L2-TYPE
47'' V15 DRT REV0.6 1 R2-TYPE
Panel Sticker Number: LD470DUN-TFC1
TV Models: 47LV35A-5BC LG6916-1933A, 6916L-1935A, 6916L-2112A, 6916L-2113A, 47 V15 DRT
