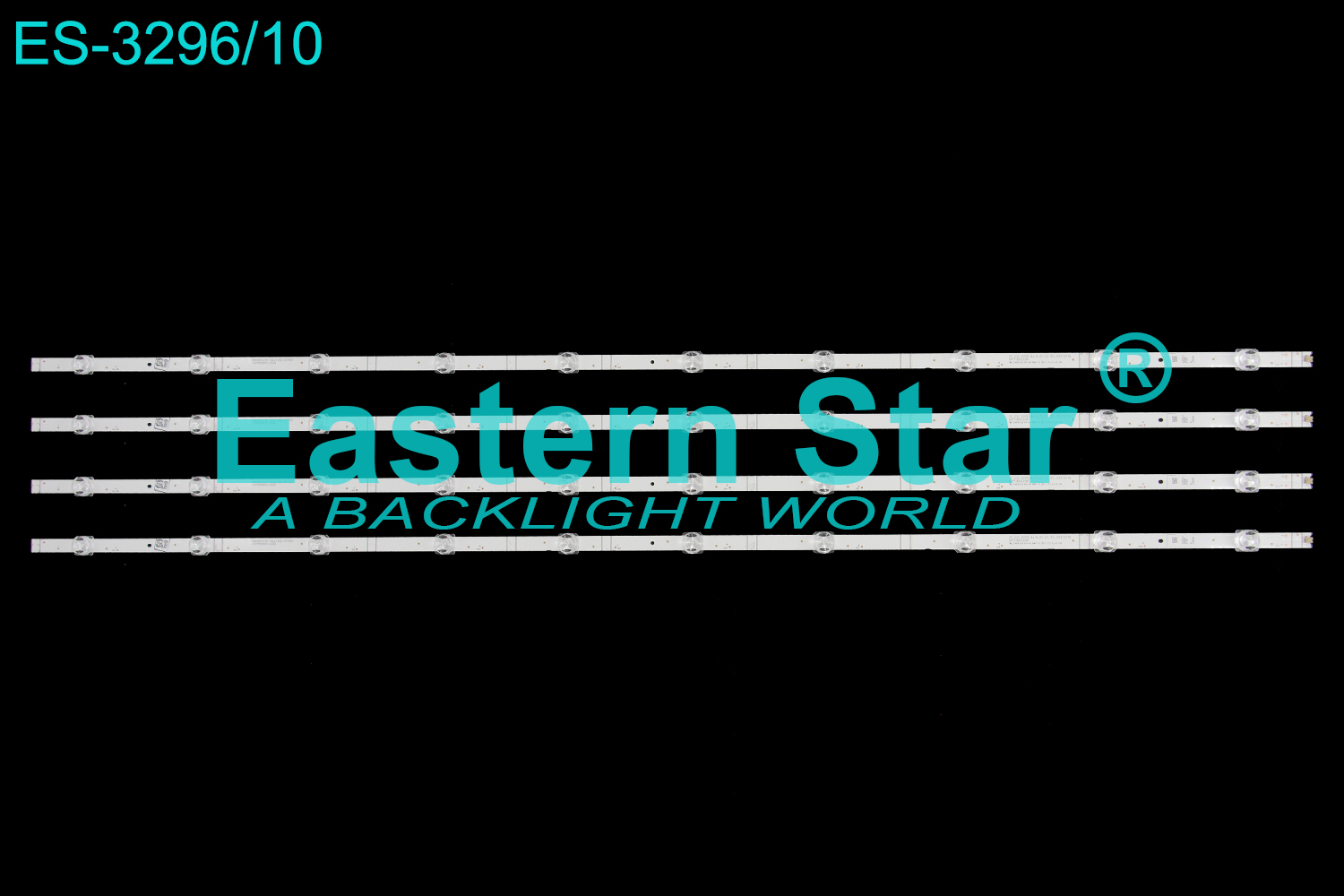

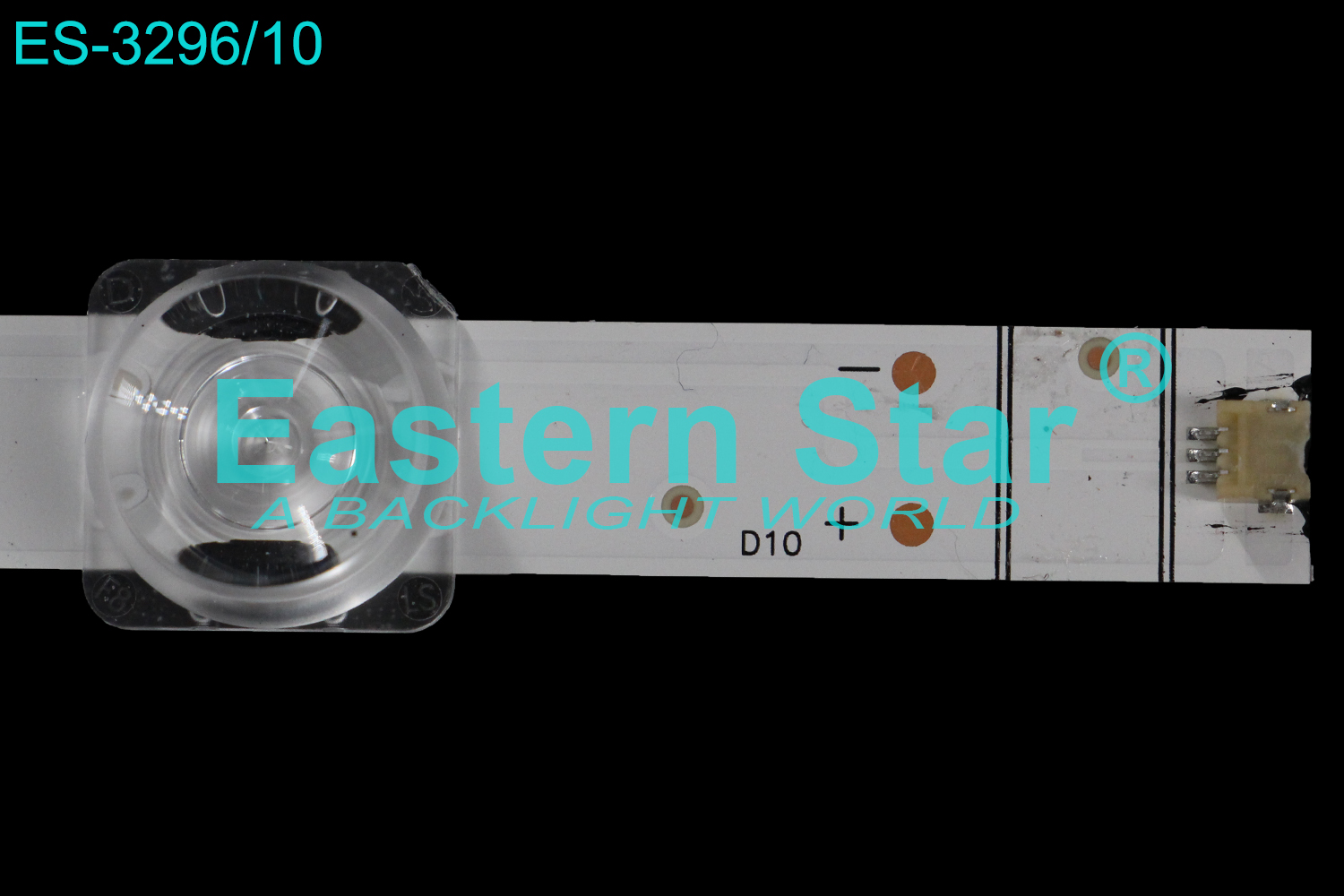

ES-3296 LED TV Backlight use for 55" Hisense/Toshiba 55R6G 55A6BG SVH550FA1+ZDJG| 1246021|201020| HD55071U72-T0L2+2-2--813-1|ZD_SSC_D550_4X10_01_V1.3_20200813 LED STRIP(4)
Publish Date:2022-05-23 Visits:5767
Length:1058MM
Voltage:3V
LED Quantity: 10LEDs
Original Code:

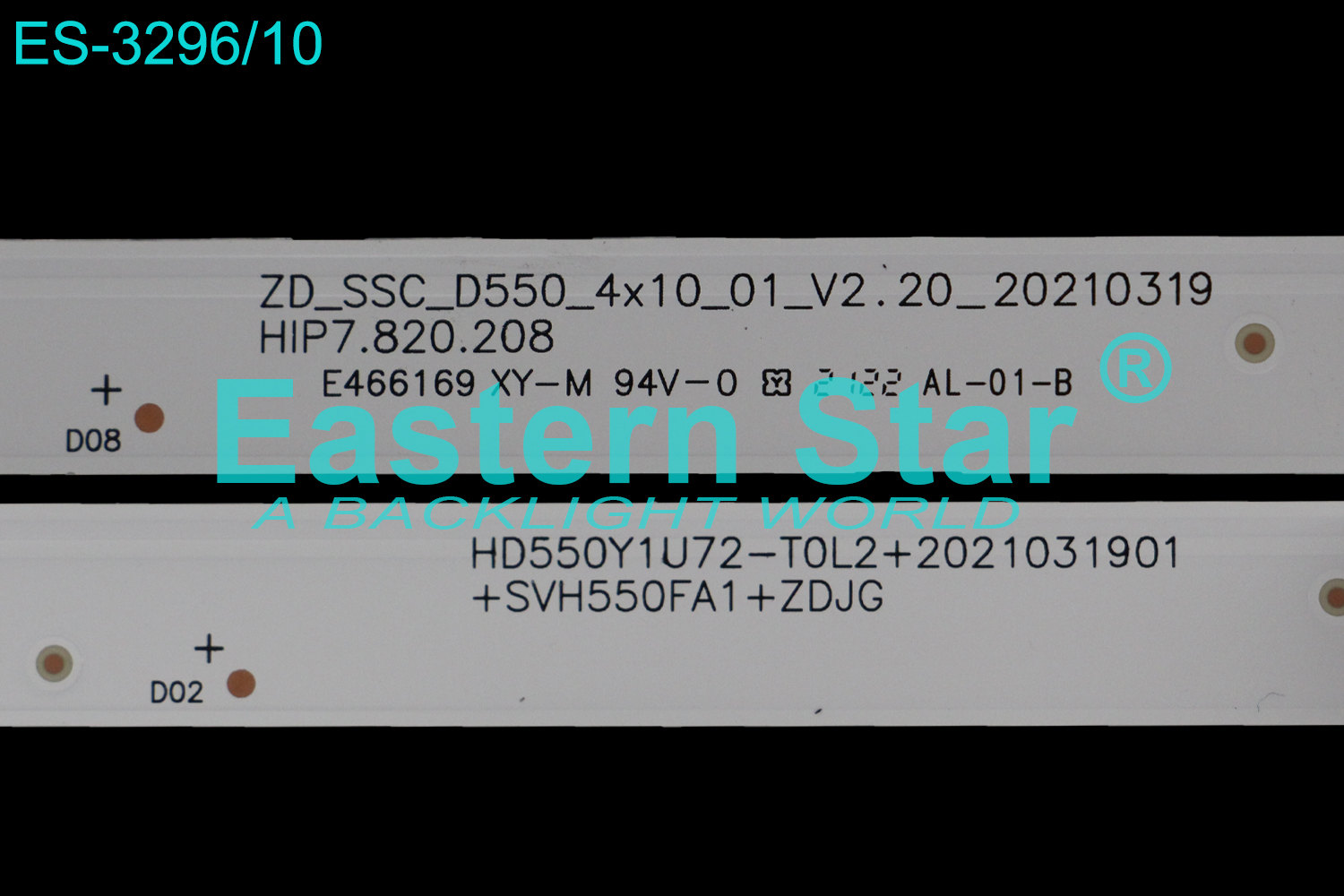

SVH550FA1+ZDJG| 1246021|201020| HD55071U72-T0L2+2-2--813-1|ZD_D550_4X10_01_V1.3_20200813
ZD_D550_4X10_01_V2.20_20210319 JL.D550A1330-003BS-M V01 HD550Y1U62-T0L+2021020401| 1304324 HD550Y1U72-T0L2+2021031901
ES Model: ES-3296/10
Brands: use for Hisense/Toshiba
Complete Set: 1SET=4PCS
Length:1058MM
Voltage: 3V
Original Code:
SVH550FA1+ZDJG| 1246021|201020| HD55071U72-T0L2+2-2--813-1|ZD_D550_4X10_01_V1.3_20200813
ZD_D550_4X10_01_V2.20_20210319 JL.D550A1330-003BS-M V01 HD550Y1U62-T0L+2021020401| 1304324 HD550Y1U72-T0L2+2021031901
Panel Sticker Number: HD550Y1U51-T0L2
TV Models: 55R6G, 55A6G, 55R6095G5, 55R6070G,55C350KU,
use for Hisense: 55E7HQ 55R7G5 55A6H 55A65H 55A6GV
use for:Toshiba: 55C350KU 55C350LU,55A63H,55A6BG
