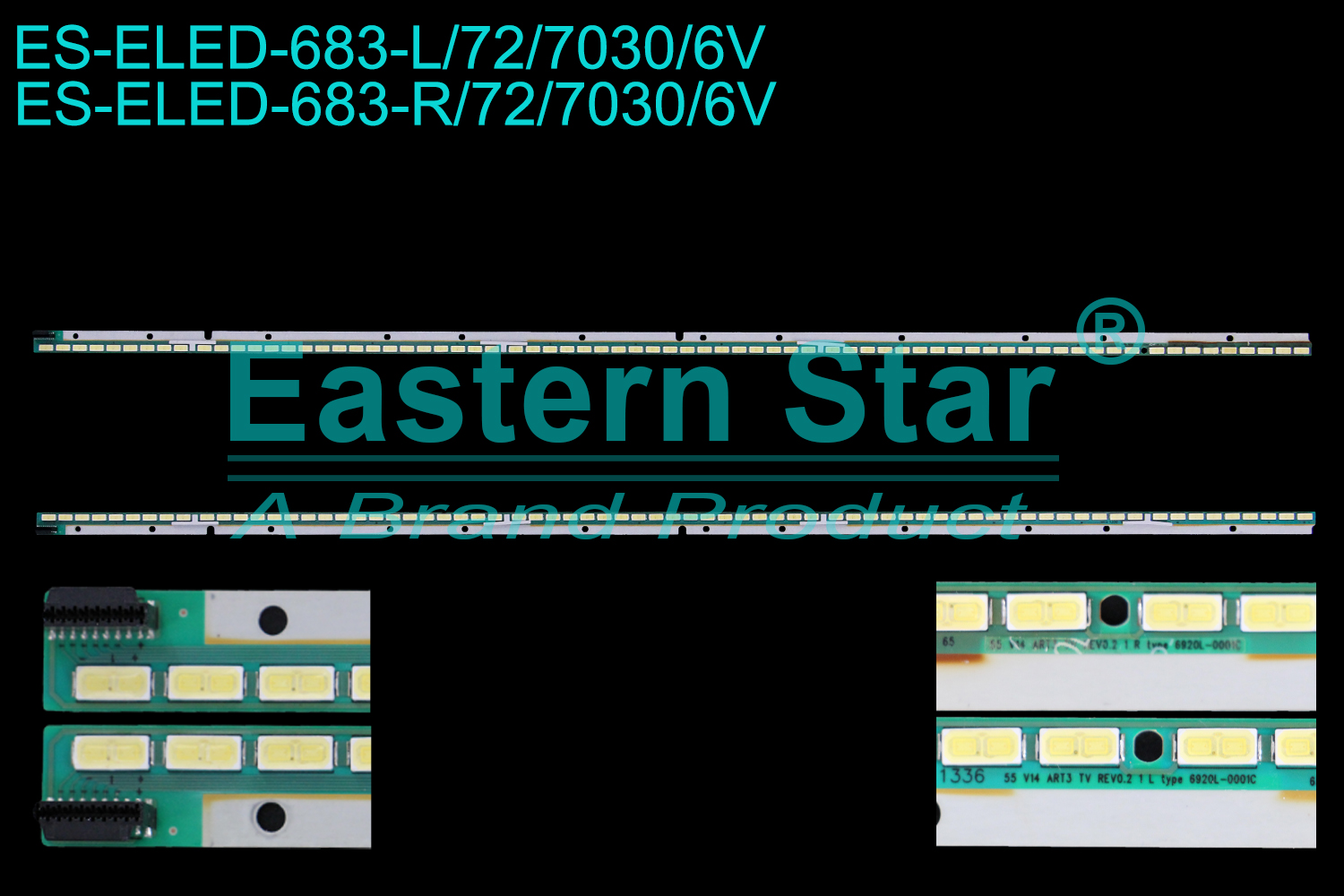

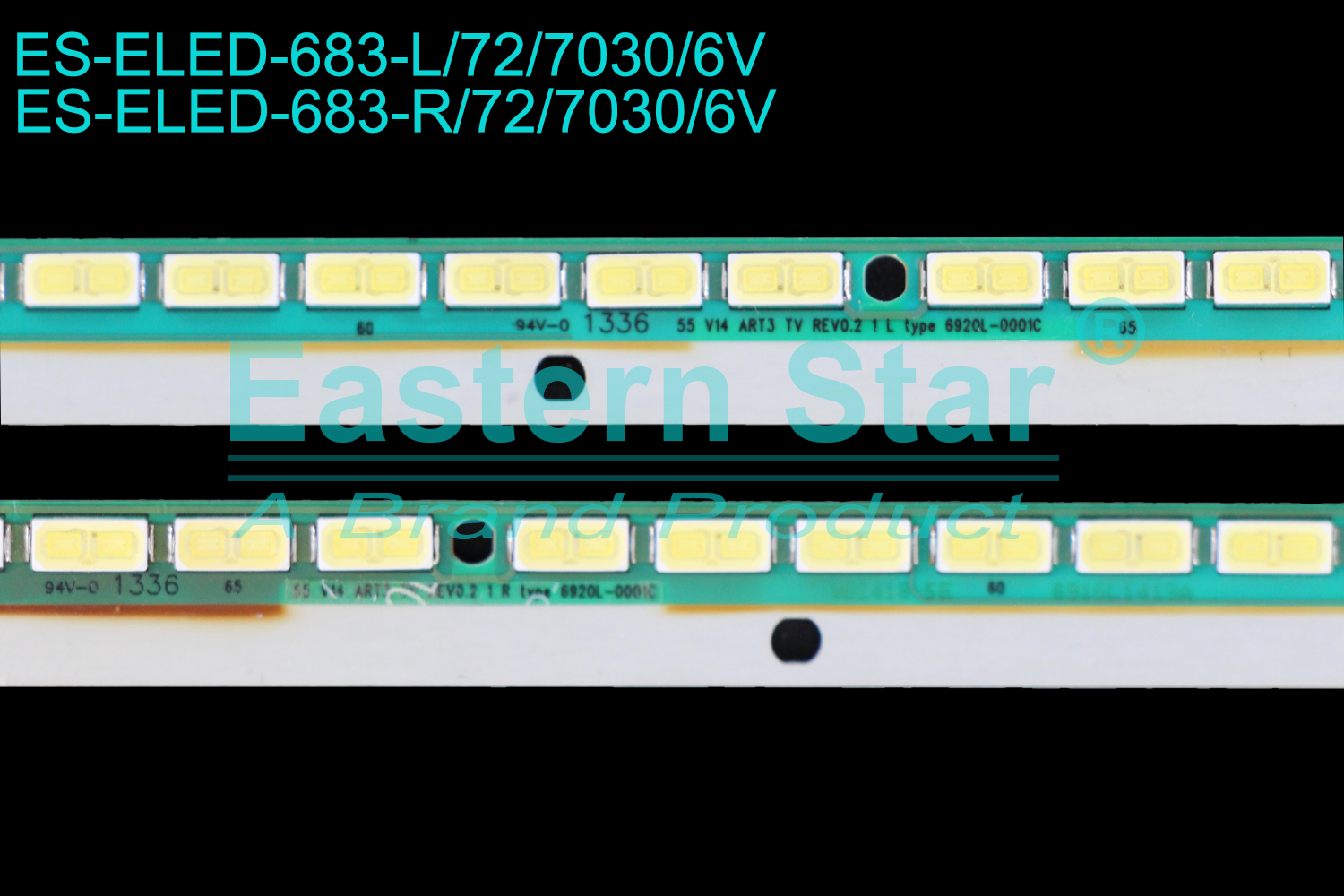

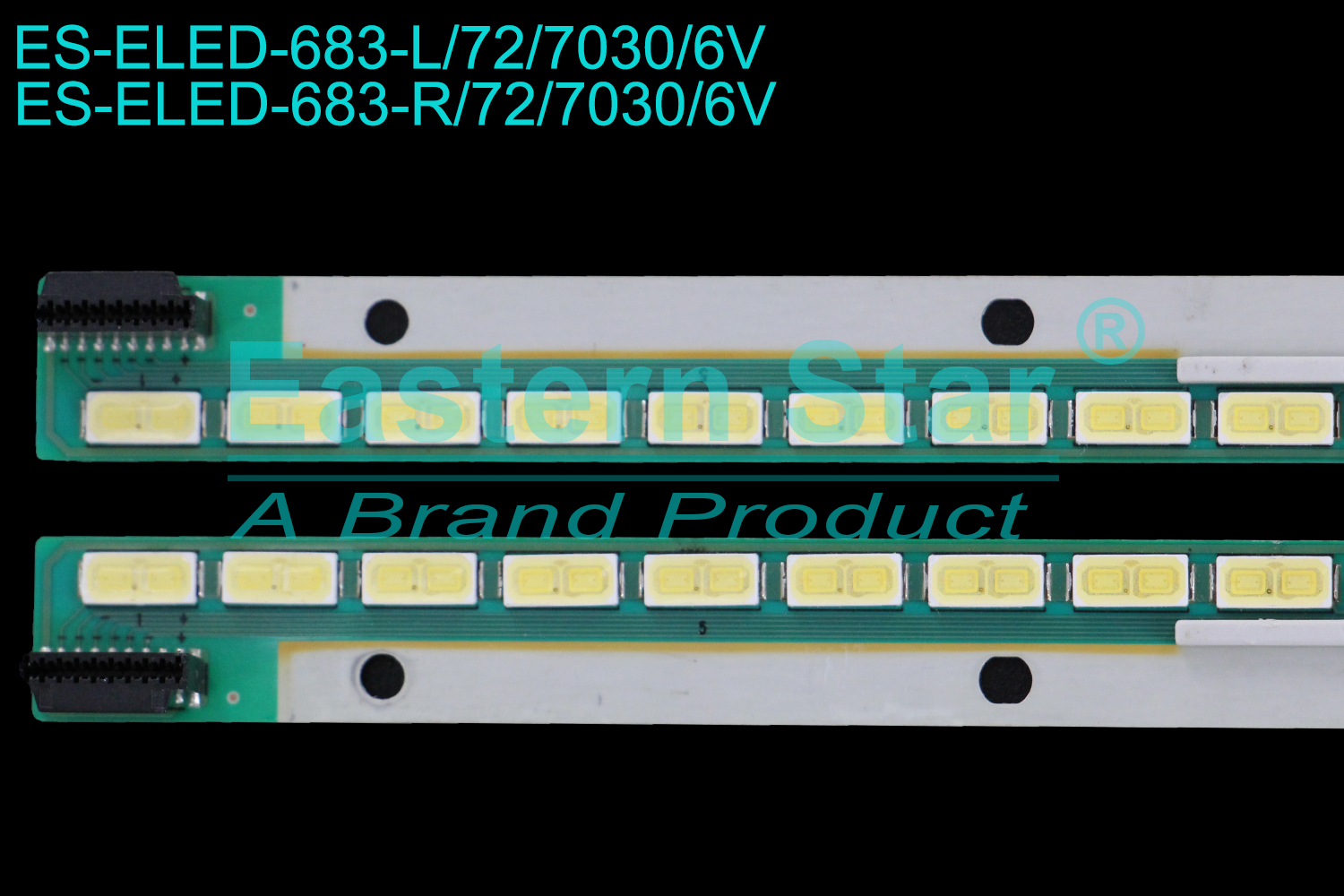

ES-ELED-683 ELED/EDGE TV backlight use for Lg/Skyworth 55'' LED55X9500UF L: NFT-ME9 94V-0 1336 55 V14 ART3 TV REV0.2 1 L/R type 6920L-0001C 6922L-0087A 6916L-1745A 6916L-1746A 6920L-0001C 6900L-0691C 6900L-0691D LED STRIPS(2)
Publish Date:2023-08-28 Visits:4238
Length: L=R:604MM
Voltage:6V
LED Quantity: L: 72LEDs R: 72LEDs
Original Code:
L: NFT-ME9 94V-0 1336 55 V14 ART3 TV REV0.2 1 L type 6920L-0001C
R: NFT-ME9 94V-0 1336 55 V14 ART3 TV REV0.2 1 R type 6920L-0001C 6922L-0087A 6916L-1745A 6916L-1746A 6920L-0001C 6900L-0691C 6900L-0691D
ES Model: ES-ELED-683-L/72/7030/6V ES-ELED-683-R/72/7030/6V
Brands: use for Lg/Skyworth
Complete Set: 1SET=1L+1R
Length: L=R:604MM
Voltage: 6V
Original Code:
L: NFT-ME9 94V-0 1336 55 V14 ART3 TV REV0.2 1 L type 6920L-0001C
R: NFT-ME9 94V-0 1336 55 V14 ART3 TV REV0.2 1 R type 6920L-0001C 6922L-0087A 6916L-1745A 6916L-1746A 6920L-0001C
6900L-0691C 6900L-0691D
Panel Sticker Number: LC550EQDFGF4 LC550EQF FG F1 LC550EQFFGF1 LC550EQF FG F2 LC550EQFFGF2 LC550EQF FG F3 LC550EQFFGF3 LC550EQF FG F4 LC550EQFFGF4
TV Models: LED55X9500UF 55UB9500 55UB950V 55LA9650 55LA9659 55LA965W 55LA965V 55E790U,55LA970V 55LA9709 55LA965Y
