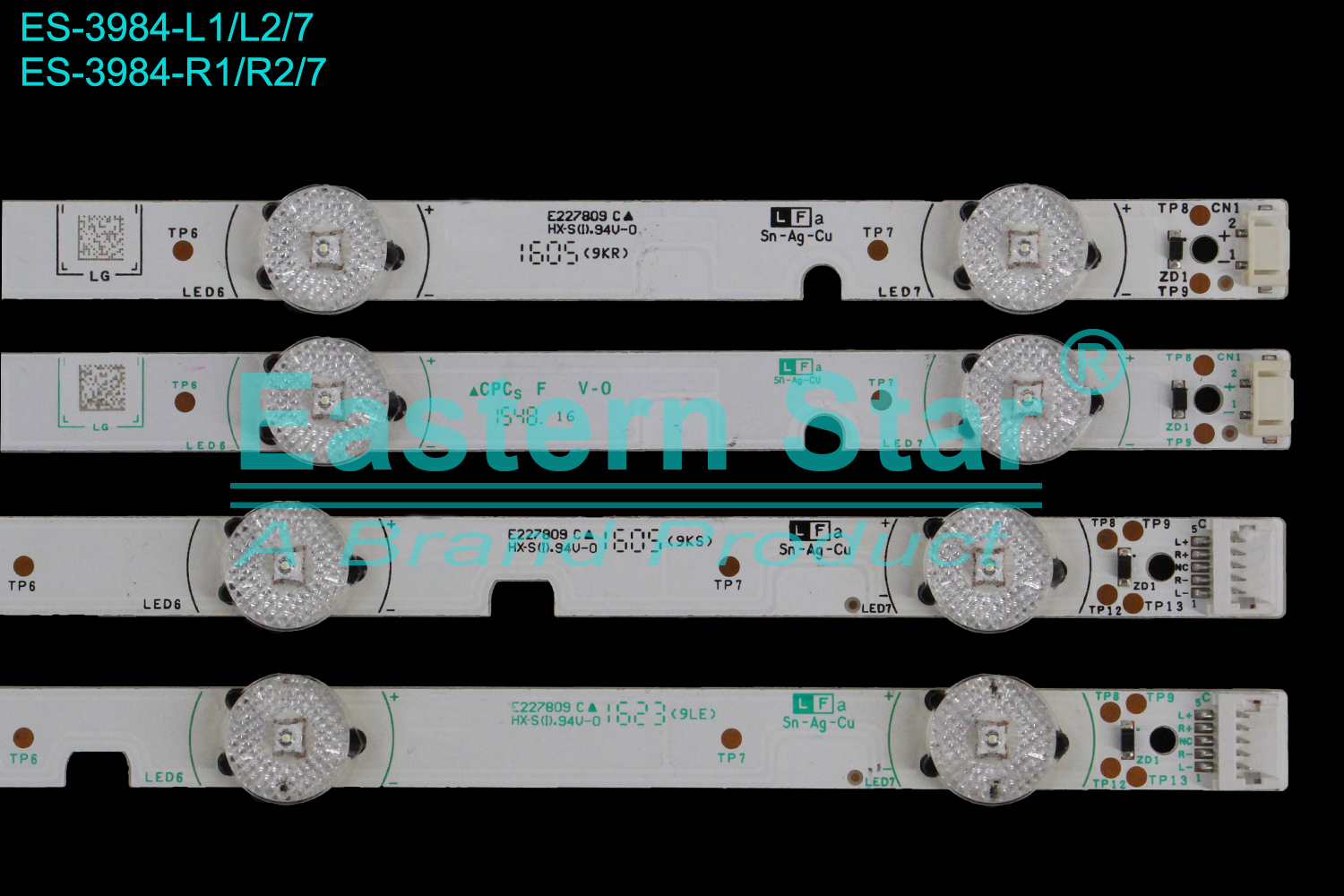

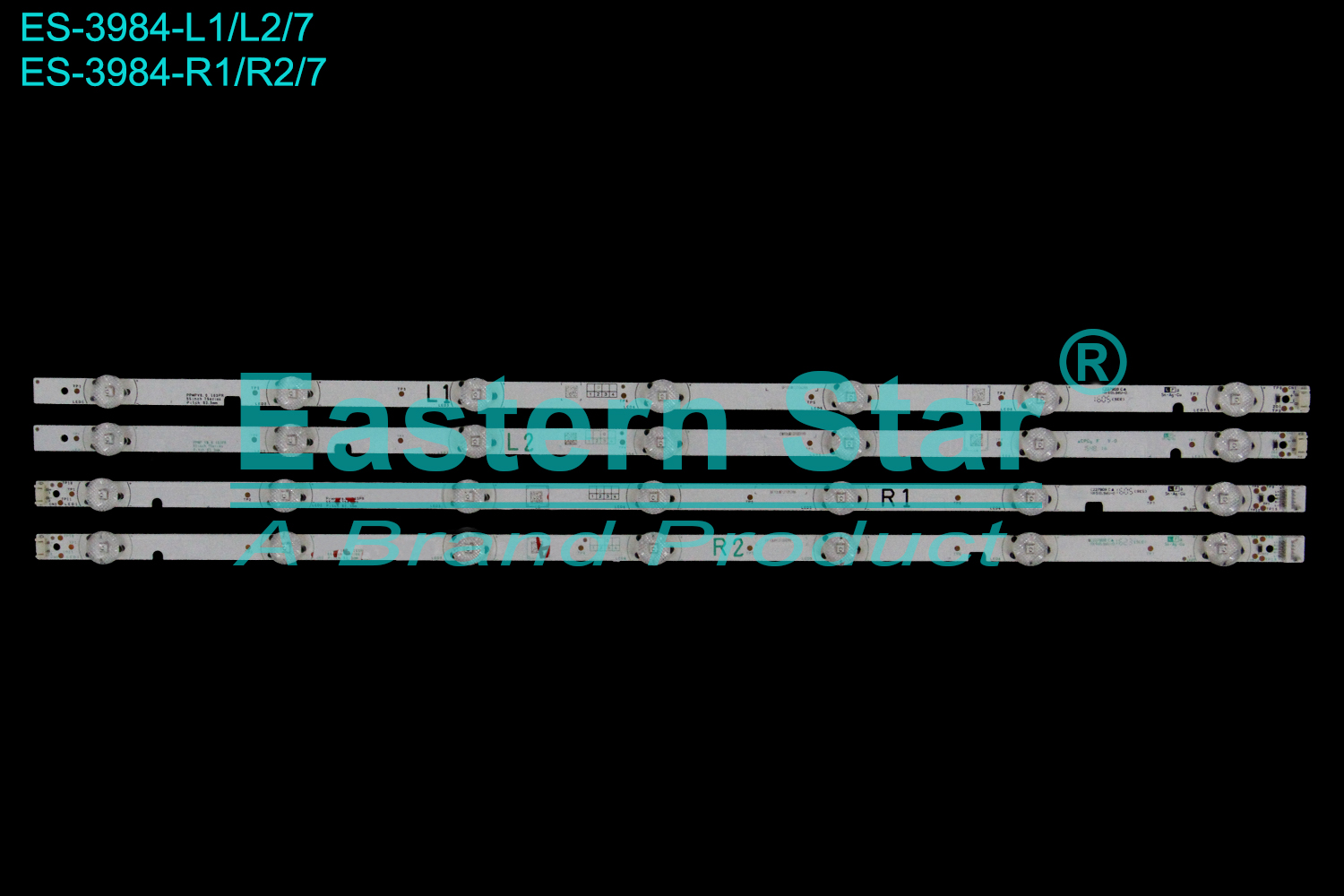

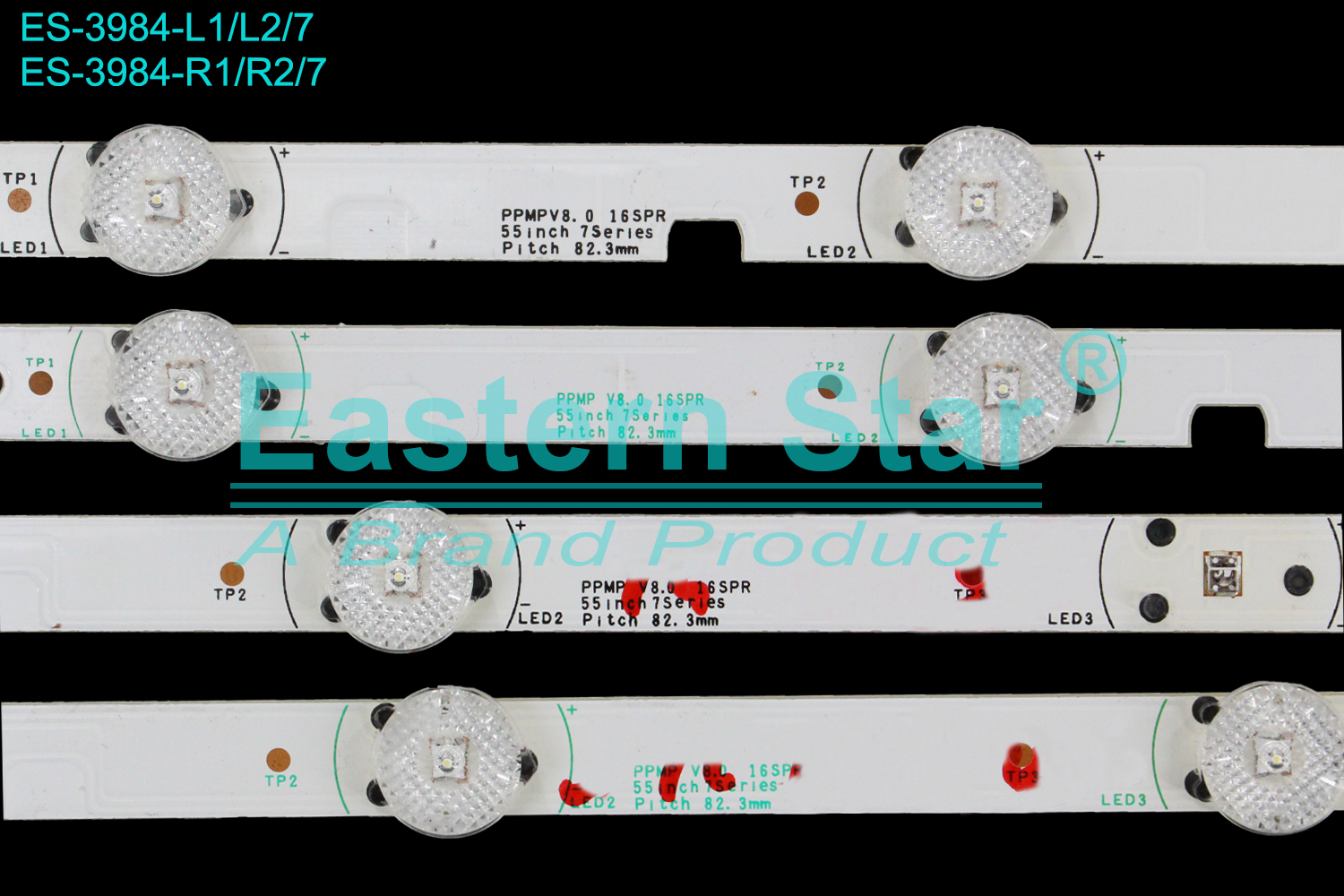

ES-3984 LED TV Backlight use for 55" Sharp 55L2555 BP10UW12T06288, CW10UW13T00199, BE10UW12T05286, FF10UH13T00098,PPMPV8.0 16SPR 55inch 7Series Pitch 82.3mm LED STRIP(14)
Publish Date:2023-10-31 Visits:440
Length: L1=L2=R1=R2:560MM
Voltage:6V
LED Quantity: L1: 7LEDs L2: 7LEDs R1: 7LEDs R2: 7LEDs
Original Code:BP10UW12T06288, CW10UW13T00199, BE10UW12T05286, FF10UH13T00098,PPMPV8.0 16SPR 55inch 7Series Pitch 82.3mm
ES Model: ES-3984-L1/L2/7 ES-3984-R1/R2/7
Brands: use for Sharp
Complete Set: 1SET=7R1/R2+7L1/L2
Length: L1=L2=R1=R2:560MM
Voltage: 6V
Original Code:BP10UW12T06288, CW10UW13T00199, BE10UW12T05286, FF10UH13T00098,PPMPV8.0 16SPR 55inch 7Series Pitch 82.3mm
Panel Sticker Number: /
TV Models: 55L2555
